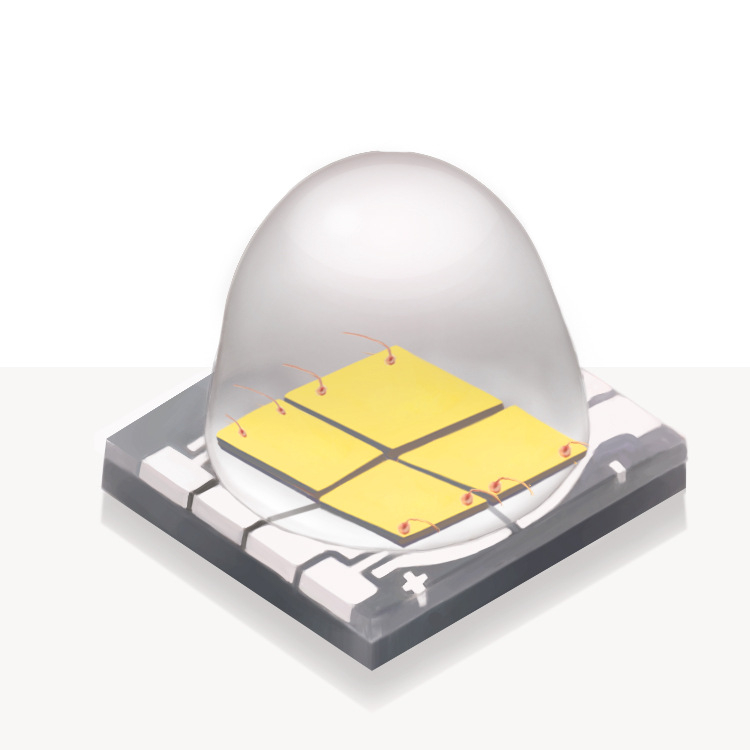

JH-5050WW6K48-T8A
LEDGUHON
| Quantity: | |
|---|---|
Features:
• Well-known chip material, Sanan
• 99.99% gold wire bonding
• High flux per LED
• Industry best moisture sensitivity
• Low-temp & lead-free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications:
• Reading lights (car, bus, aircraft)
• Portable (flashlight, bicycle)
• Uplighters/ Downlighters
• Decorative/ Entertainment
• Bollards/ Security/ Garden
• Indoor/ Outdoor Commercial and Residential Architecture
Data:
| Parameter | Symbol | Color | Min | Type | Max | Unit | Test Condition |
| Forward Voltage | VF | Warm White | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Luminous Flux | Warm White | 160 | 170 | 180 | LM | IF=700mA | |
| Color Temperature | TC | Warm White | 2800 | 3000 | 3200 | K | IF=700mA |
| Reverse Current | IR | ||||||
| Viewing Angle | 1/2 | 60 | Deg | IF=700mA | |||
| Recommend Forward Current | IF(rec) | Warm White | 700 | mA |
