JH-2835R12S1214-P10A-LSZ680
LEDGUHON
| Quantity: | |
|---|---|

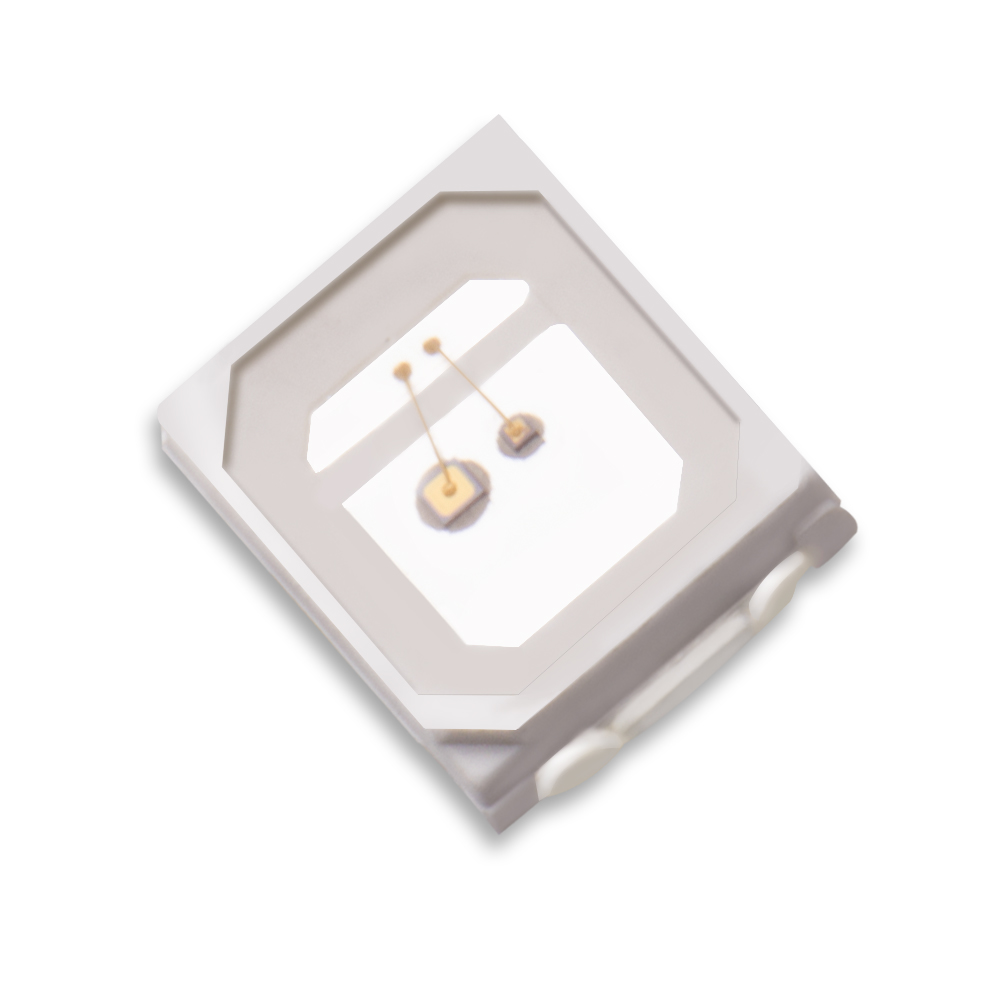

2835 Patch LED multi-wavelength combination light source is a versatile and advanced solution for medical and beauty applications.
This light source combines three different wavelengths in one compact package, allowing for targeted and effective treatment.
The multi-wavelength feature enables various applications, such as acne treatment, skin rejuvenation.
2835 Patch LED light source is designed to meet the demands of professional medical and beauty practitioners, offering a reliable and efficient solution for optimal results.
| Part No. | emitting color | Wavelength(nm) | Power(W) | Voltage(V) | Current(mA) | Optical power（mW） | Angle(deg) |
JH-2835R12S1214-P10A-LSZ680 | R | 660-665 | 2*0.02W | 1.9-2.1 | 15 | 5-7 | 25 |
| R | 675-680 | 1.2-1.3 | 11 | 6-7 | |||
| IR | 845-850 | 1.6-1.8 | 24 | 15-20 | |||
| IR | 930-950 | 1.7-2.2 | 12 | 5-7 | |||
| R | 675-680 | 2.1-2.3 | 60 | 28-33 | |||
| IR | 845-850 | 1.5-1.7 | 12 | 7-10 | |||
| IR | 930-950 | 1.7-2.1 | 9 | 5-7 | |||
| IR | 930-950 | 2.3-2.5 | 260 | 170-200 |
Note:
Wavelength can be customized according to demand 365-1600nm,
Photodynamic medical beauty products, beauty instrument, photon skin rejuvenation instrument, large row of lights, beauty mask, etc.
