JH-5050IRRIR12G14-T12A-620-1072
LEDGUHON
| Size: | |
|---|---|
| Quantity: | |

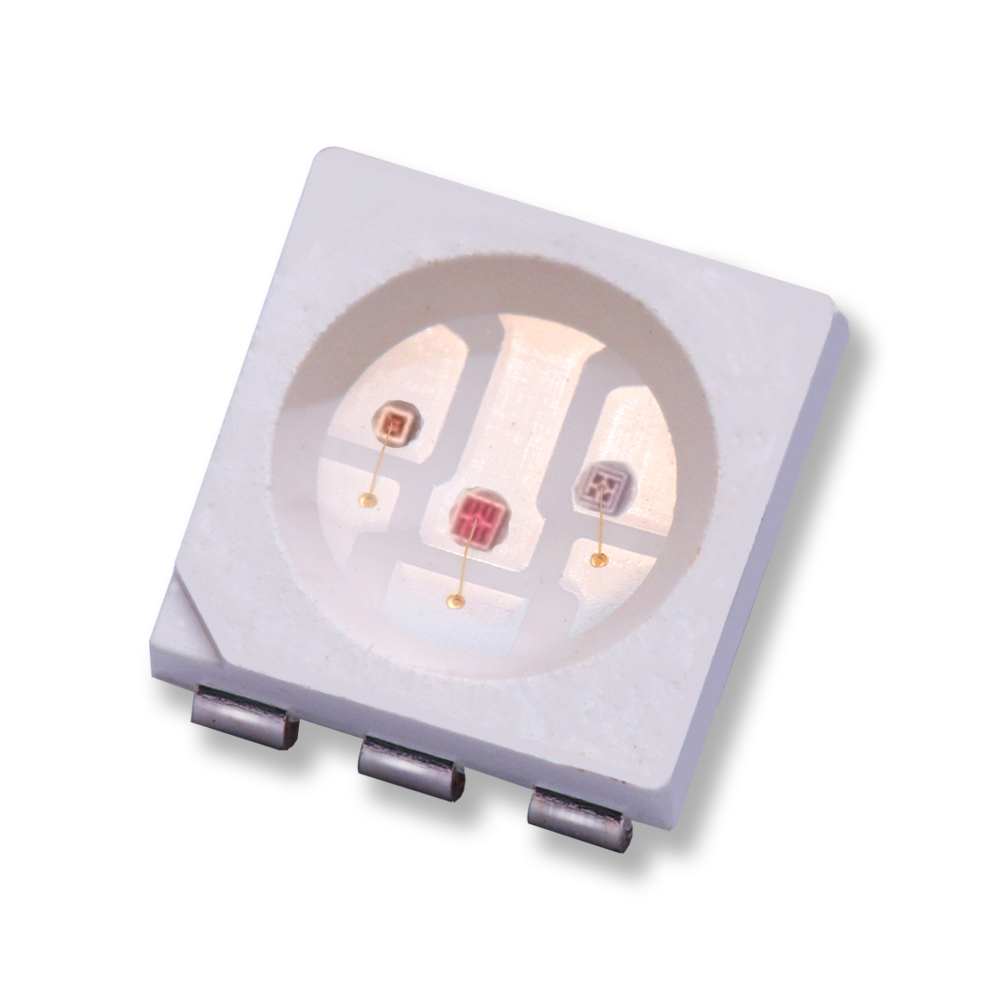

5050 Patch LED multi-wavelength combination light source is a versatile and advanced solution for medical and beauty applications.
This light source combines three different wavelengths in one compact package, allowing for targeted and effective treatment.
The multi-wavelength feature enables various applications, such as acne treatment, skin rejuvenation.
5050 Patch LED light source is designed to meet the demands of professional medical and beauty practitioners, offering a reliable and efficient solution for optimal results.
| Part No. | emitting color | Wavelength(nm) | Power(W) | Voltage(V) | Current(mA) | Power Dissipation (mW)/ Luminous (lm) | Angle(deg) |
JH-5050IRRIR12G14-T12A-620-1072 (Large chip） | Red | 620-625 | 3*0.06W | 1.8-2.2 | 20 | 4-6 lm | 120 |
| IR | 830-835 | 1.3-1.5 | |||||
| 6-11 mw | |||||||
| IR | 1067-1072 | 1.2-1.4 | 4-6 mw | ||||
JH-5050IRRI12 ZC10-T12A -620-1072（Micro chip） | Red | 620-625 | 3*0.06W | 1.8-2.2 | 20 | 3-5 lm | 120 |
| IR | 830-835 | 1.3-1.5 | 5-10 mw | ||||
| IR | 1067-1072 | 1.2-1.4 | 3-5 mw |
Note:
Wavelength can be customized according to demand 365-1600nm,
Photodynamic medical beauty products, beauty instrument, photon skin rejuvenation instrument, large row of lights, beauty mask, etc.
