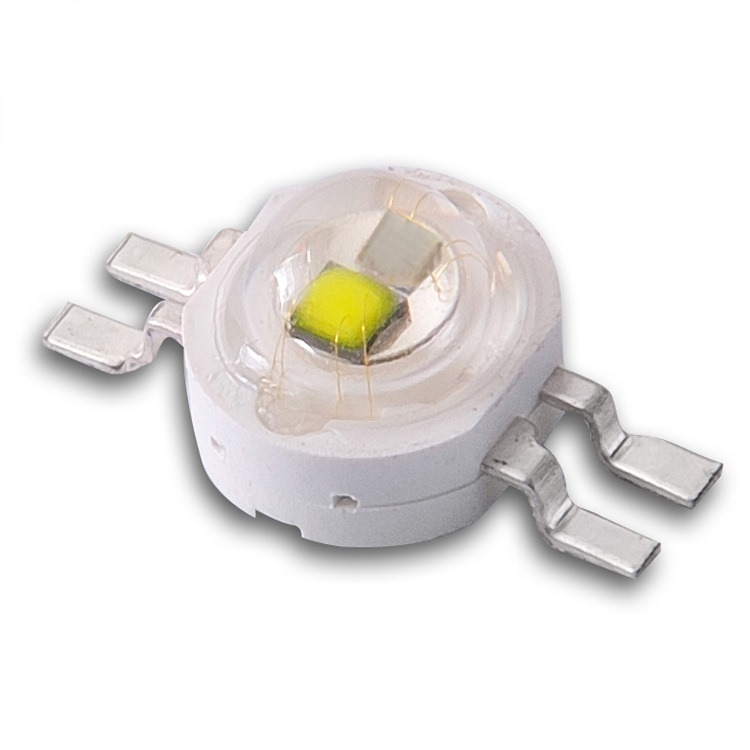

4pins 2w White Blue 2in1 High Power Led

4pins 2w White Blue 2in1 High Power Led

Product Feature:

★Adopt well-known vender’s chip package

★99.99% gold wire welding

★Good bright spots and High bright

Product Use:

★Stage Light,Decorative Light

★Fountain Light,Aquarium Light,etc


★This kind led use 4 pins frame to make,2 colors into a led

★White 6000-8000K,Blue 460-465nm, each 1w, total 2w

★It use 350mA for each color, the voltage is about 3V for each color

★Usually can use for the under water light

★The frame is copper frame,have good heat sink ability

★When use the led,please add the extra pcb under the led,the led need make good heat sink

★When soldering the led onto the pcb,if use reflow soldering,please make sure the temperature is 260℃/3s

★Please don't higher than this temperature,if too high,will damage the led

★Please don't use too high voltage and current,the max value need flow the label value

★This led is Moding type lens,so usually use reel packing, and usually 1000pcs/reel

★After receive the leds,if the bag is leaked,please bake the led at 60℃/12hours,then can do the soldering

★CE ROHS approved
