JH-20ZRIRVZY14G20-TJB-P415-855
LEDGUHON
| Quantity: | |
|---|---|

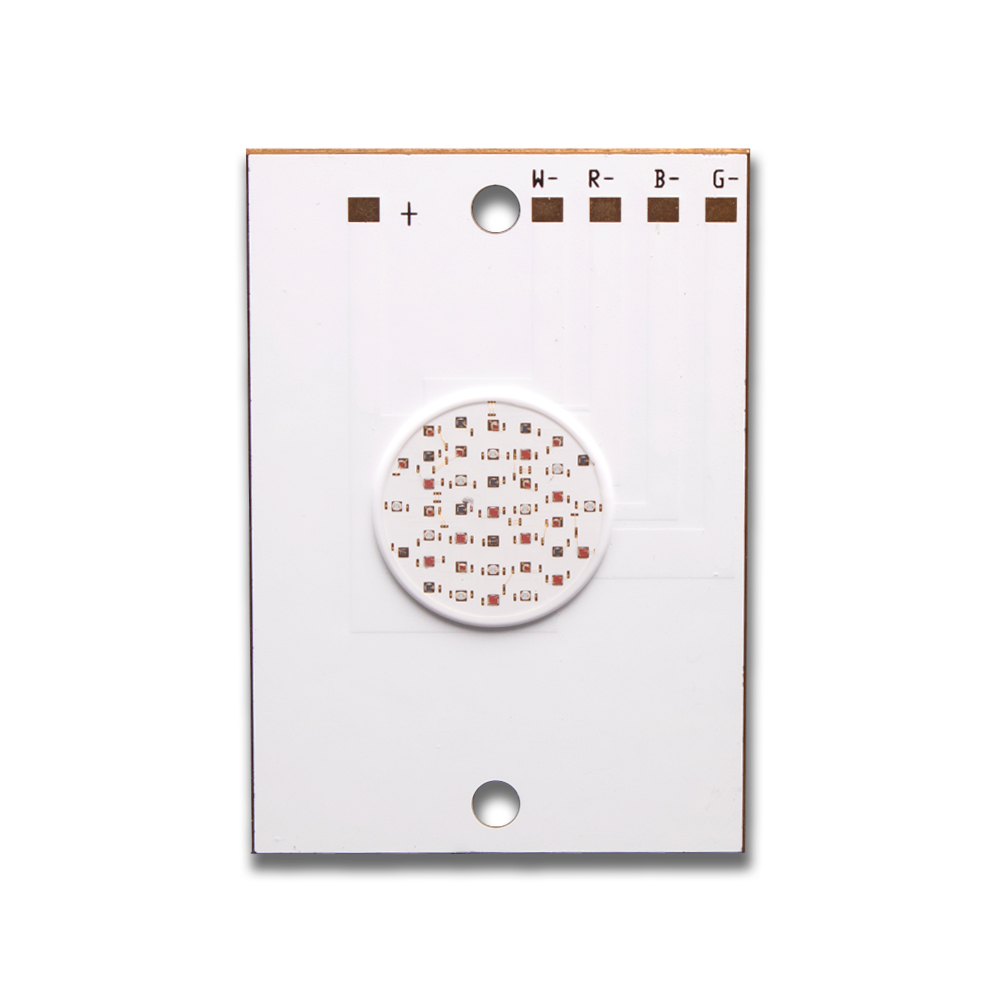

The 20W high-power integrated multi wavelength combination light source is a multifunctional and advanced solution for medical and cosmetic applications.
This light source combines multiple different wavelengths in a compact package, allowing for targeted and effective treatment.
The multi wavelength function can be used for various applications, such as red light medical devices, skin regeneration, physical therapy, medical aesthetics, etc.
The 20W high-power integrated light source is designed to meet the needs of professional medical and beauty practitioners, providing reliable and efficient solutions for achieving the best results.
| Part No. | emitting color | Wavelength(nm) | Power(W) | Voltage(V) | Current(mA) | Luminous (lm)/power dissipation（mw） | Angle(deg) |
JH-20ZRIRVZY14G20-TJB-P415-855 | V | 415-420 | 20 | 16-17 | 300 | 30-40 lm | 140 |
| IR | 850-855 | 7.5-8.5 | 230-250 lm | ||||
| R | 620-625 | 11-12 | 170-190 lm | ||||
| Y | 590-595 | 11-12 | 800-1000 mW |
Note:
Wavelength can be customized according to demand 365-1600nm,
Photodynamic medical beauty products, beauty instrument, photon skin rejuvenation instrument, large row of lights, beauty mask, etc.
