JH-5050IR18DG70-T8A-JLS940
LEDGUHON
| Quantity: | |
|---|---|

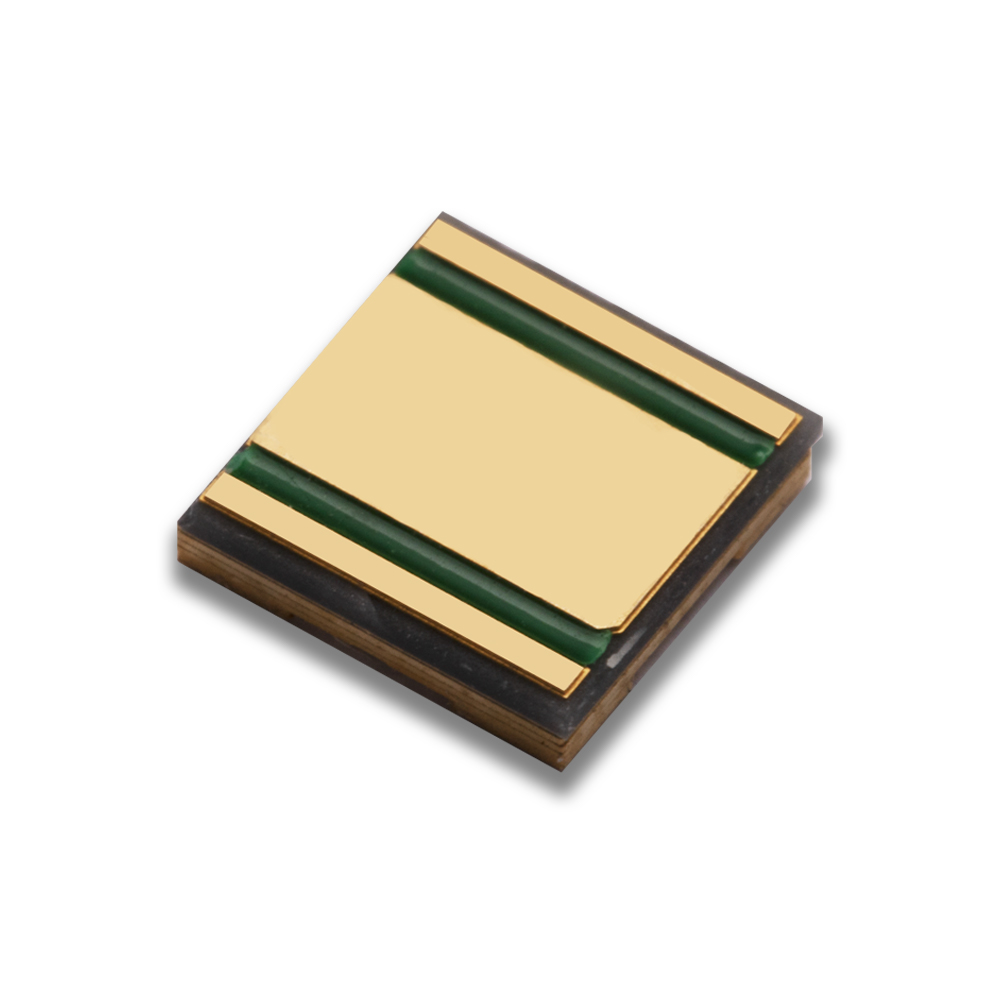

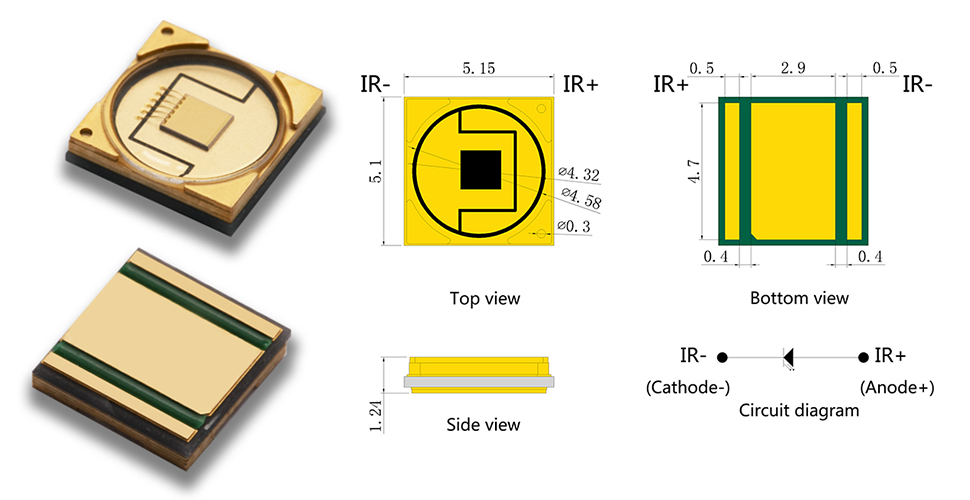

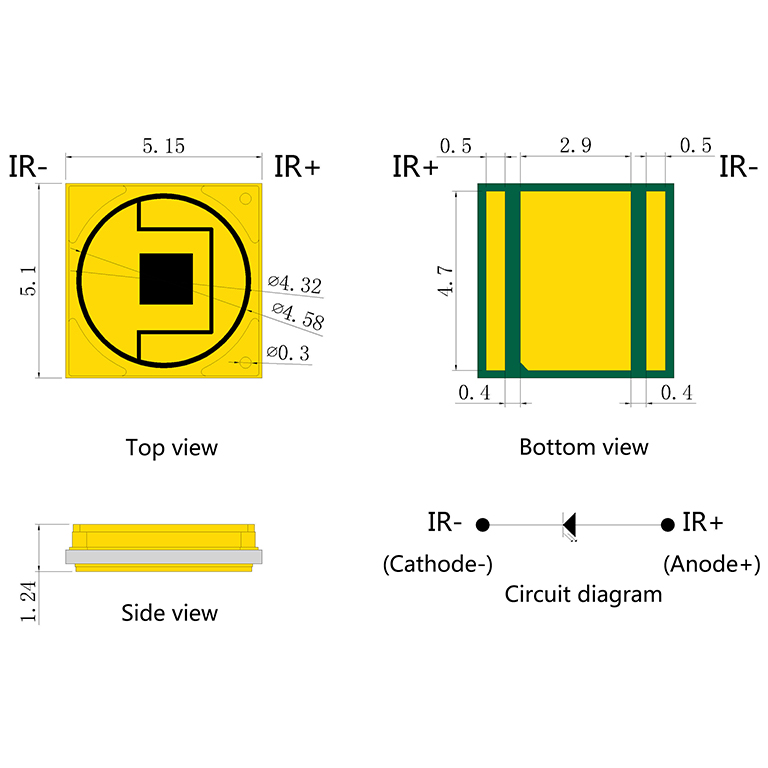

5050 laser VCSEL infrared single core high-power LED light source
| Part No. | emitting color | Power(W) | Voltage(V) | Current(mA) | optical power（W） | Angle(deg) | |
JH-5050IR18DG70-T8A-JLS940 | IR | 940 | / | 1.7-2.1 | 800-2800 | 7.2-8 | 18-24 |
| JH-5050IR18DR43-T8A-JLS1064 | IR | 1064 | / | 2.0-2.4 | 500-600 | 2.9-3.1 | 18-24 |
| JH-5050IR18DR56-T8A-JLS940 | IR | 940 | / | 2.0-2.4 | 1200-1500 | 5-6 | 18-24 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
5050 laser VCSEL infrared single core high-power LED light source
| Part No. | emitting color | Power(W) | Voltage(V) | Current(mA) | optical power（W） | Angle(deg) | |
JH-5050IR18DG70-T8A-JLS940 | IR | 940 | / | 1.7-2.1 | 800-2800 | 7.2-8 | 18-24 |
| JH-5050IR18DR43-T8A-JLS1064 | IR | 1064 | / | 2.0-2.4 | 500-600 | 2.9-3.1 | 18-24 |
| JH-5050IR18DR56-T8A-JLS940 | IR | 940 | / | 2.0-2.4 | 1200-1500 | 5-6 | 18-24 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
