JH-3535W12S1732-T7A-BGY-80
LEDGUHON
| Quantity: | |
|---|---|

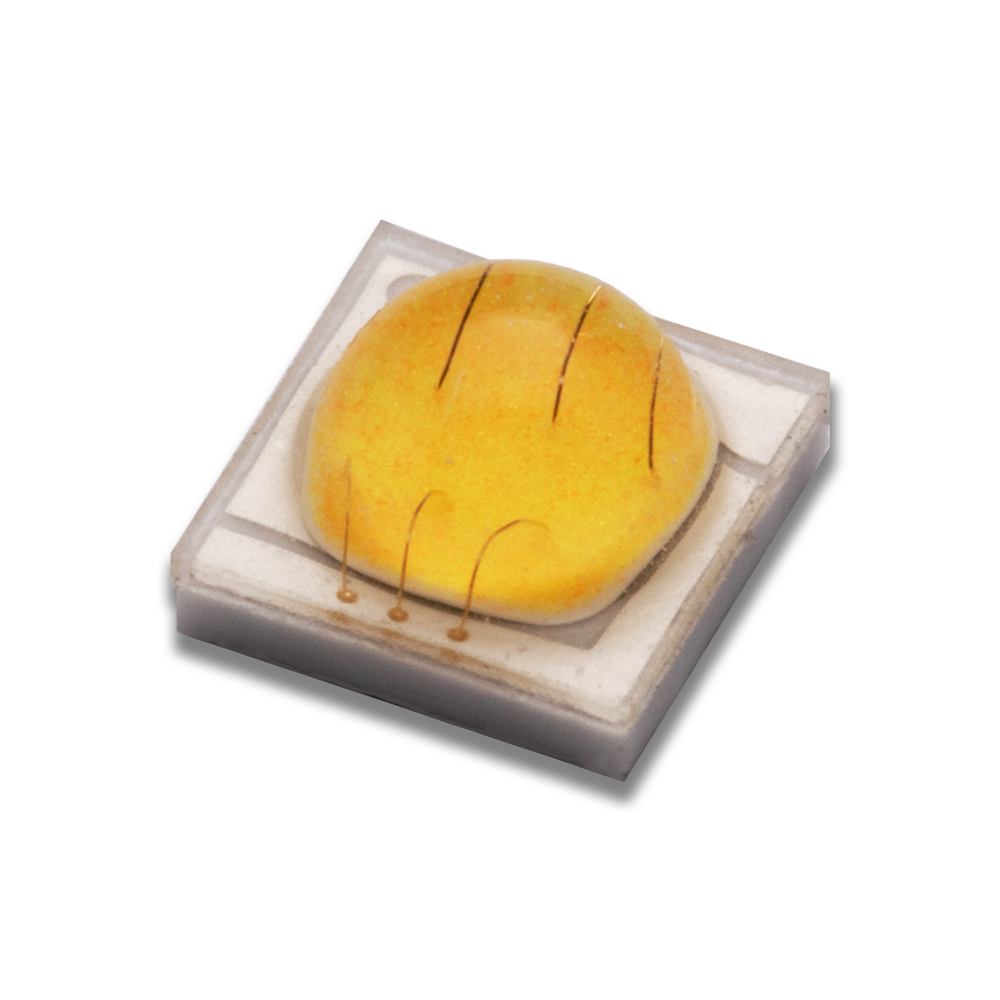

Ceramic 353518V high voltage 3W high-power ultra bright white light bead
| Part No. | emitting color | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | |
JH-3535W12S1732-T7A-BGY-80 | W | 4000 | 3 | 18-20 | 170 | 250-300 | 120 |
| JH-3535WW12S1732-T7A-BGY-80 | WW | 3000 | 3 | 18-20 | 170 | 260-310 | 120 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
