JH-7070RIR12S45-T7A-DY660-850
LEDGUHON
| Quantity: | |
|---|---|

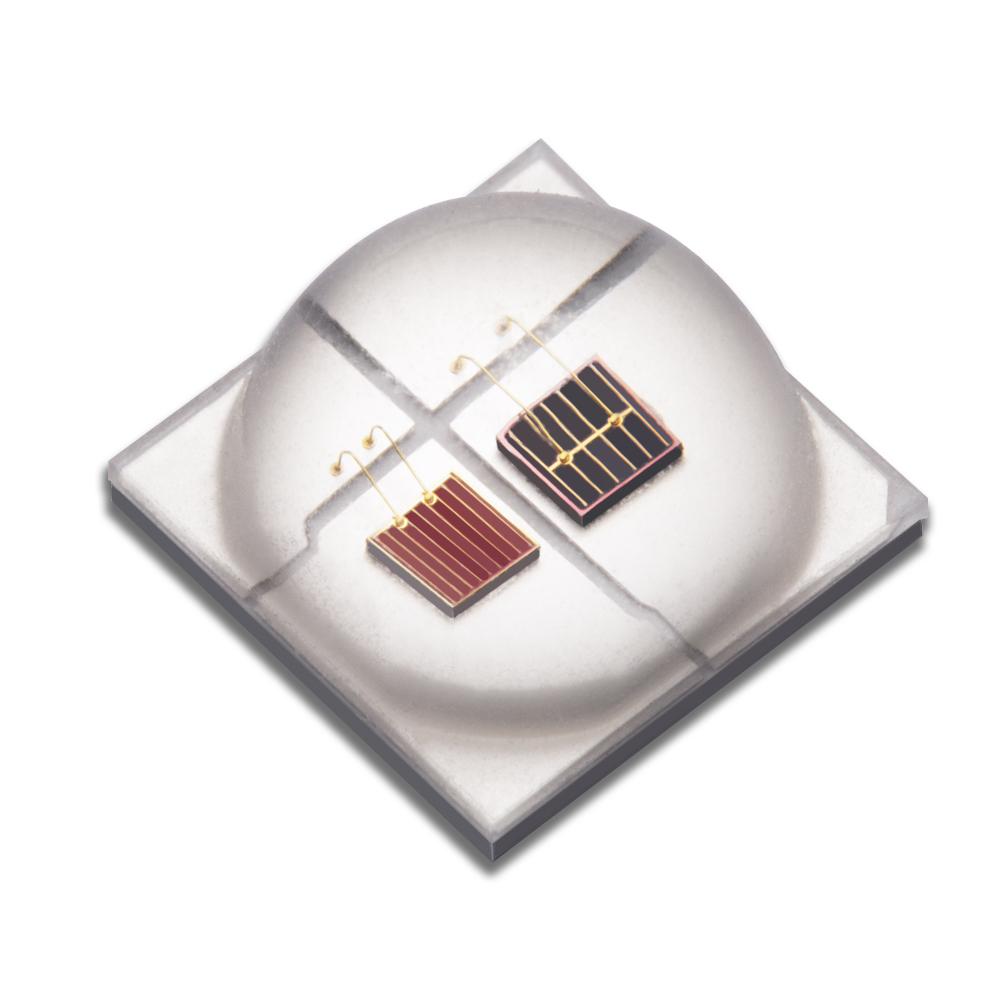

The 7070 patch LED multi wavelength combination light source is a multifunctional and advanced solution for medical and cosmetic applications.
This light source combines two different wavelengths in a compact package, allowing for targeted and effective treatment.
The multi wavelength function can be used for various applications, such as acne treatment and skin regeneration.
The 7070 patch LED light source is designed to meet the needs of professional medical and beauty practitioners, providing reliable and efficient solutions for achieving the best results.
| Part No. | emitting color | Wavelength(nm) | Power(W) | Voltage(V) | Current(mA) | luminous flux(lm)/ | Angle(deg) |
| JH-7070RB12G45-T7A-DY460-625 | B | 460-465 | 2*3W | 3.2-3.6 | 700 | 50-60 lm | 120 |
| R | 620-625 | 2.2-2.6 | 110-130 lm | ||||
| JH-7070RV12G45-T7A-DY410-625 | R | 620-625 | 2*3W | 2.2-2.6 | 700 | 110-130 lm | 120 |
| V | 410-415 | 3.2-3.6 | 25-35 lm | ||||
| JH-7070RIR12S45-T7A-DY660-850 | R | 660-665 | 2*3W | 2.0-2.4 | 700 | 50-70 lm | 120 |
| IR | 845-850 | 1.4-1.8 | 300-500 mW | ||||
| JH-7070RY12S40-T7A-DY590-625 | R | 620-625 | 2*3W | 2.2-2.6 | 700 | 110-130 lm | 120 |
| Y | 590-595 | 3.2-3.6 | 60-80 lm |
Note:
Wavelength can be customized according to demand 365-1600nm,
Photodynamic medical beauty products, beauty instrument, photon skin rejuvenation instrument, large row of lights, beauty mask, etc.
