JH-7070B12S38-T7A-DYA455
LEDGUHON
| Quantity: | |
|---|---|

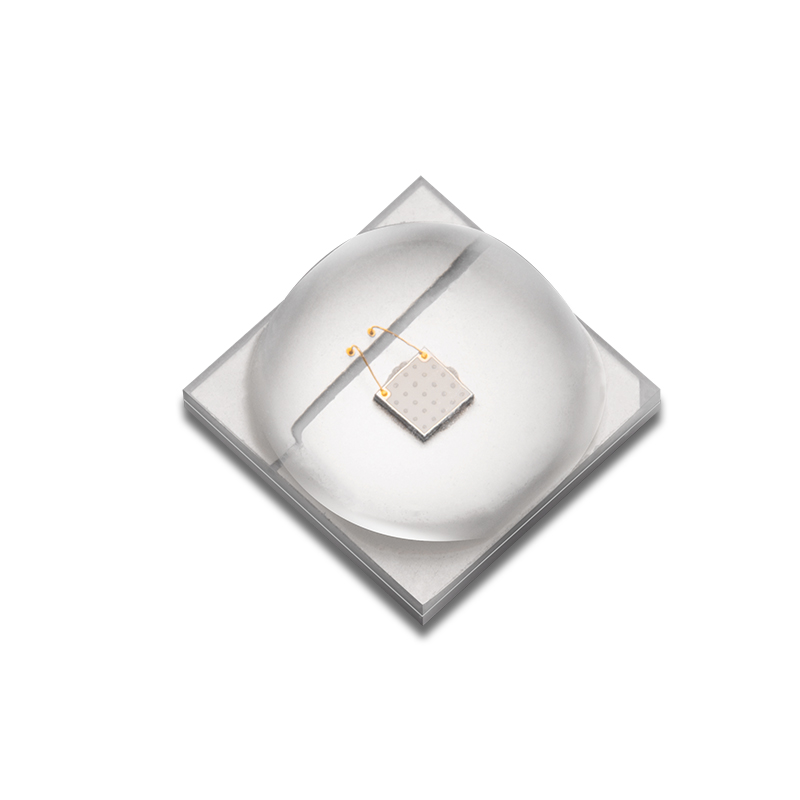

Ceramic 7070 single core red green blue LED bead high brightness stage light landscape light dedicated RGB light source
| Part No. | emitting color | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | |
JH-7070B12S38-T7A-DYA455 | B | 450-455 | 3 | 3.0-3.4 | 700 | 40-50 | 120 |
| JH-7070G12S38-T7A-DYA | G | 520-525 | 3.0-3.4 | 270-290 | |||
| JH-7070R12S40-T7A-DY | R | 620-625 | 2.2-2.6 | 120-140 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
Ceramic 7070 single core red green blue LED bead high brightness stage light landscape light dedicated RGB light source
| Part No. | emitting color | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | |
JH-7070B12S38-T7A-DYA455 | B | 450-455 | 3 | 3.0-3.4 | 700 | 40-50 | 120 |
| JH-7070G12S38-T7A-DYA | G | 520-525 | 3.0-3.4 | 270-290 | |||
| JH-7070R12S40-T7A-DY | R | 620-625 | 2.2-2.6 | 120-140 |
Note:
The color temperature can be customized according to the requirements of 3000/4000/6000/10000K Etc.
