JH-3535GRBW12DXY24-T10A-GY18
LEDGUHON
| Quantity: | |
|---|---|

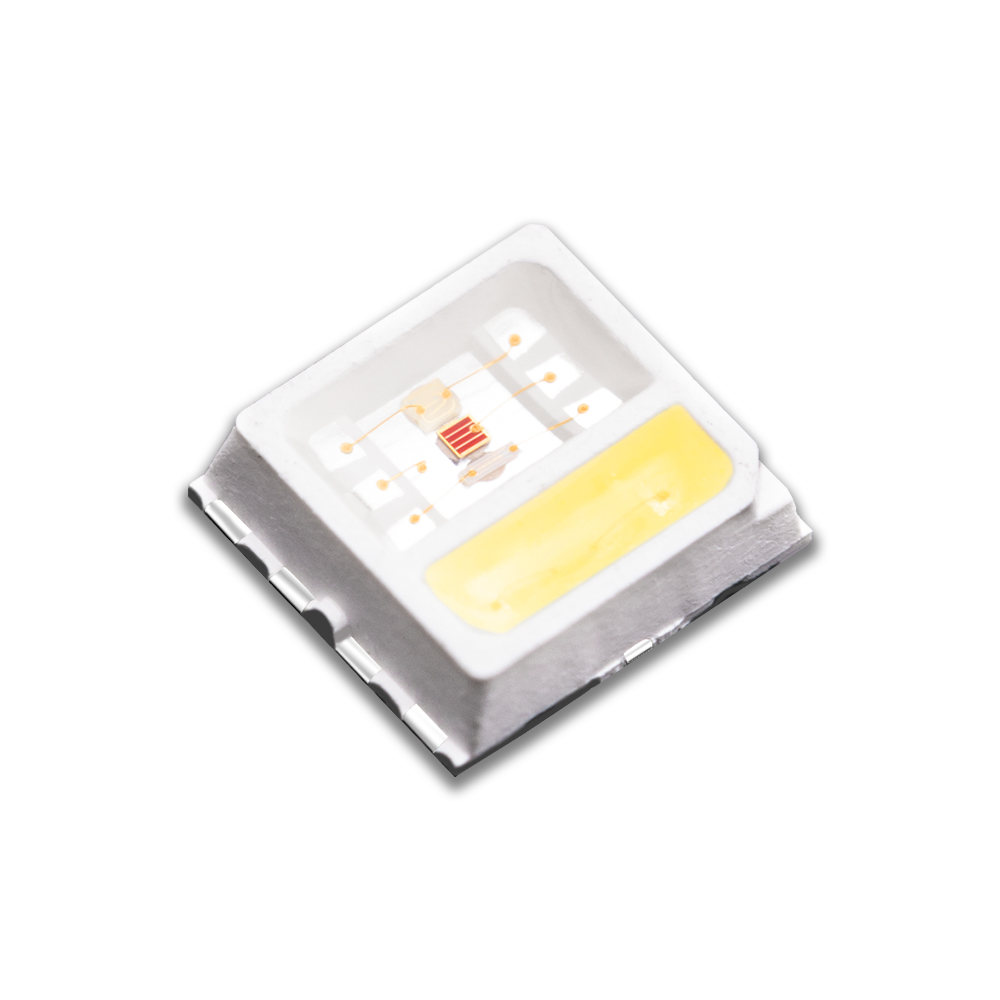

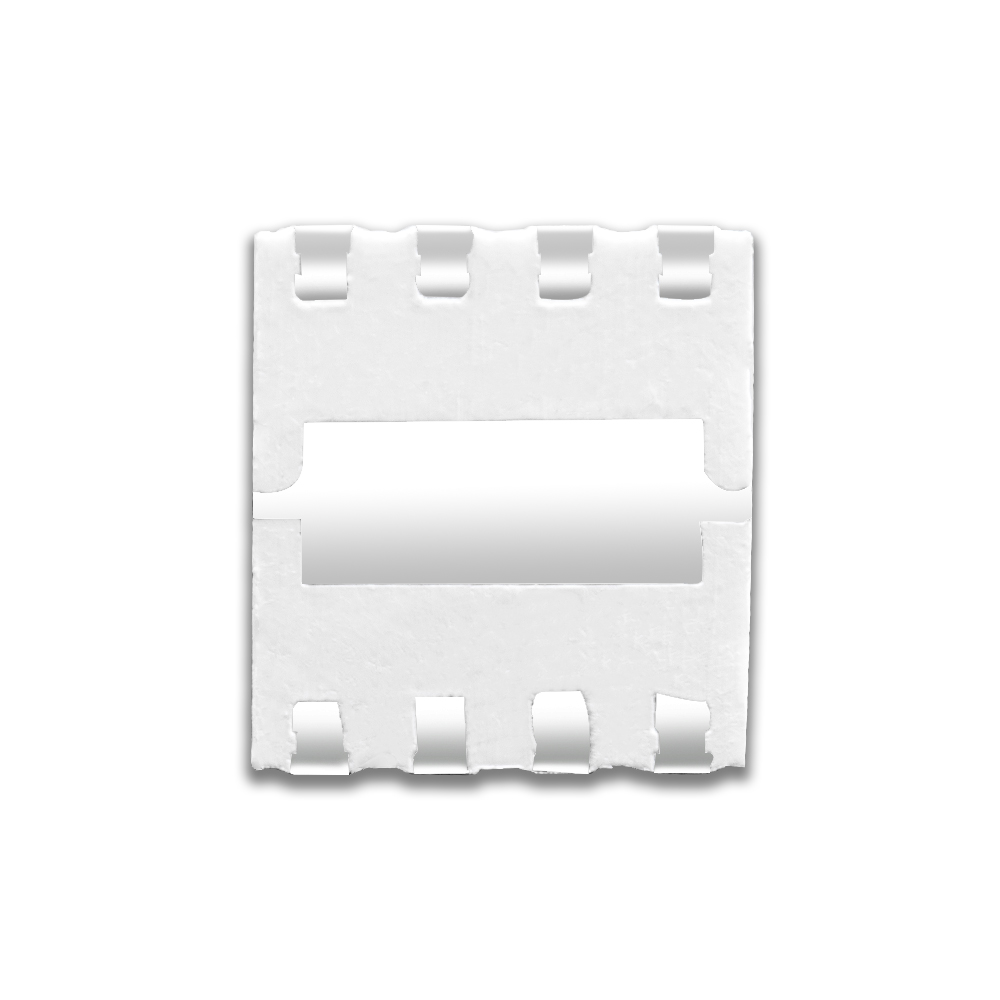

Chip 3535 High-voltage 18V RGBW Four-in-One Color LED Light Source
| Part No. | emitting color | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | |
JH-3535GRBW12DXY24-T10A-GY18 | W | 6000-7000K | 4*0.05W | 17-19 | 20 | 45-65 | 120 |
| B | 465-470 nm | 17-19 | 7-11 | ||||
| G | 525-530 nm | 16-17 | 30-40 | ||||
| R | 620-625 nm | 18-19 | 8-12 | ||||
| JH-3535GRBW12ZC14-T10A | R | 620-625 nm | 4*0.05W | 2.0-2.4 | 50 | 7-11 | 120 |
| G | 520-525 nm | 3.0-3.4 | 14-19 | ||||
| B | 455-460 nm | 3.0-3.4 | 2-4 | ||||
| W | 6000-7000K | 3.0-3.4 | 15-25 |
Note:
The wavelength can be customized according to requirements.
