JH-3535GRBWZ12ZC14-T10A
LEDGUHON
| Quantity: | |
|---|---|

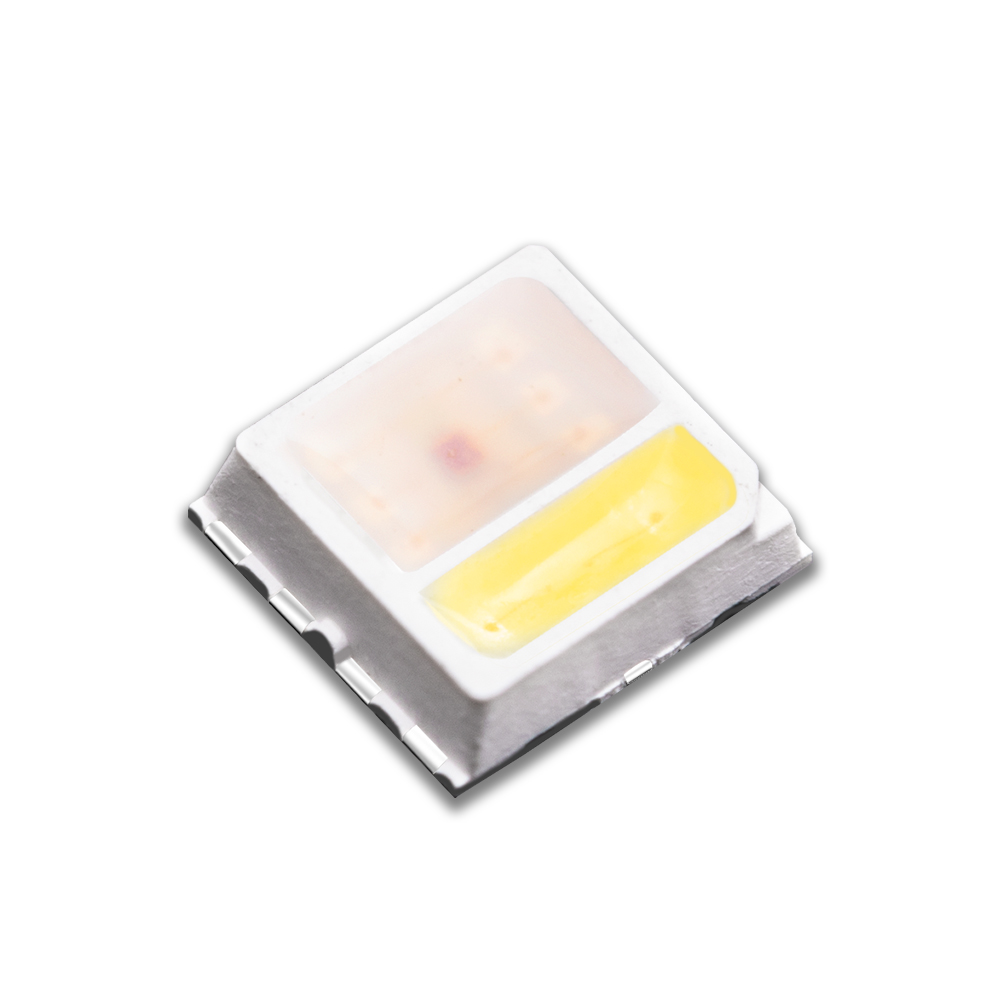

Chip 3535 mist-like RGBW four-in-one color LED light source.
| Part No. | emitting color | Power(W) | Voltage(V) | Current(mA) | Luminous Flux(lm) | Angle(deg) | |
| JH-3535GRBWZ12ZC14-T10A | W | 6000-7000K | 4*0.05W | 3.0-3.4 | 50 | 15-25 | 120 |
| B | 455-460 nm | 3.0-3.4 | 2-4 | ||||
| G | 520-525 nm | 3.0-3.4 | 14-19 | ||||
| R | 620-625 nm | 2.0-2.4 | 6-8 |
Note:
The wavelength can be customized according to requirements.
