JH-3030RIR12QX26-T7A-G660-850
LEDGUHON
| Quantity: | |
|---|---|

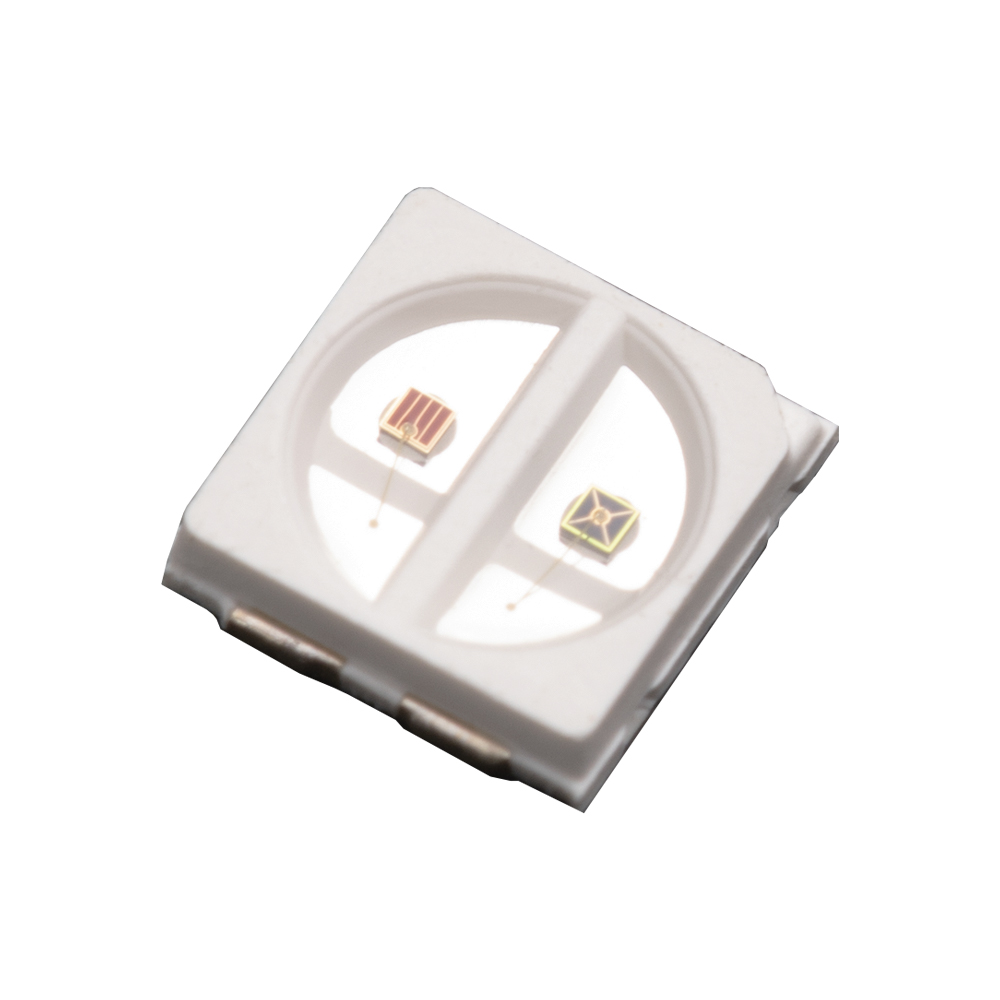

The 3030 ceramic LED multi-wavelength combination light source is a multifunctional and advanced solution, suitable for medical and cosmetic applications.
This light source integrates five different wavelengths into a compact package, enabling precise and effective treatment.
The multi-wavelength function can be applied to various applications, such as acne treatment and skin regeneration.
The 3030 ceramic LED light source is specifically designed to cater to the needs of professional medical and beauty practitioners, offering a reliable and efficient solution for achieving optimal results
| Part No. | emitting color | Wavelength(nm) | Power(W) | Voltage(V) | Current(mA) | luminous flux(lm)/ | Angle(deg) |
| JH-3030RIR12ZC26-T7A-G620-850 | R | 620-625 | 2 | 2.0-2.4 | 350 | 40-50 lm | 120 |
| IR | 845-855 | 1.4-1.8 | 350 | 120-170 mW | |||
| JH-3030RIR12QX26-T7A-G660-850 | R | 655-660 | 2 | 2.0-2.4 | 350 | 18-23 lm | 120 |
| IR | 845-855 | 1.4-1.8 | 350 | 120-170 mW | |||
| JH-3030RIR12ZC16-T7A-G620-850 | R | 620-625 | 1 | 2.0-2.4 | 150 | 20-25 lm | 120 |
| IR | 850-855 | 1.4-1.8 | 150 | 60-110 mW | |||
| JH-3030RIR12ZC16-T7A-G660-850 | R | 655-665 | 1 | 2.0-2.4 | 150 | 8-13 lm | 120 |
| IR | 845-855 | 1.4-1.8 | 150 | 60-110 mW |
Note:
Wavelength can be customized according to demand 365-1600nm,
Photodynamic medical beauty products, beauty instrument, photon skin rejuvenation instrument, large row of lights, beauty mask, etc.
