JH-7070GRVIRY12G45-T8A-S865
LEDGUHON
| Quantity: | |
|---|---|

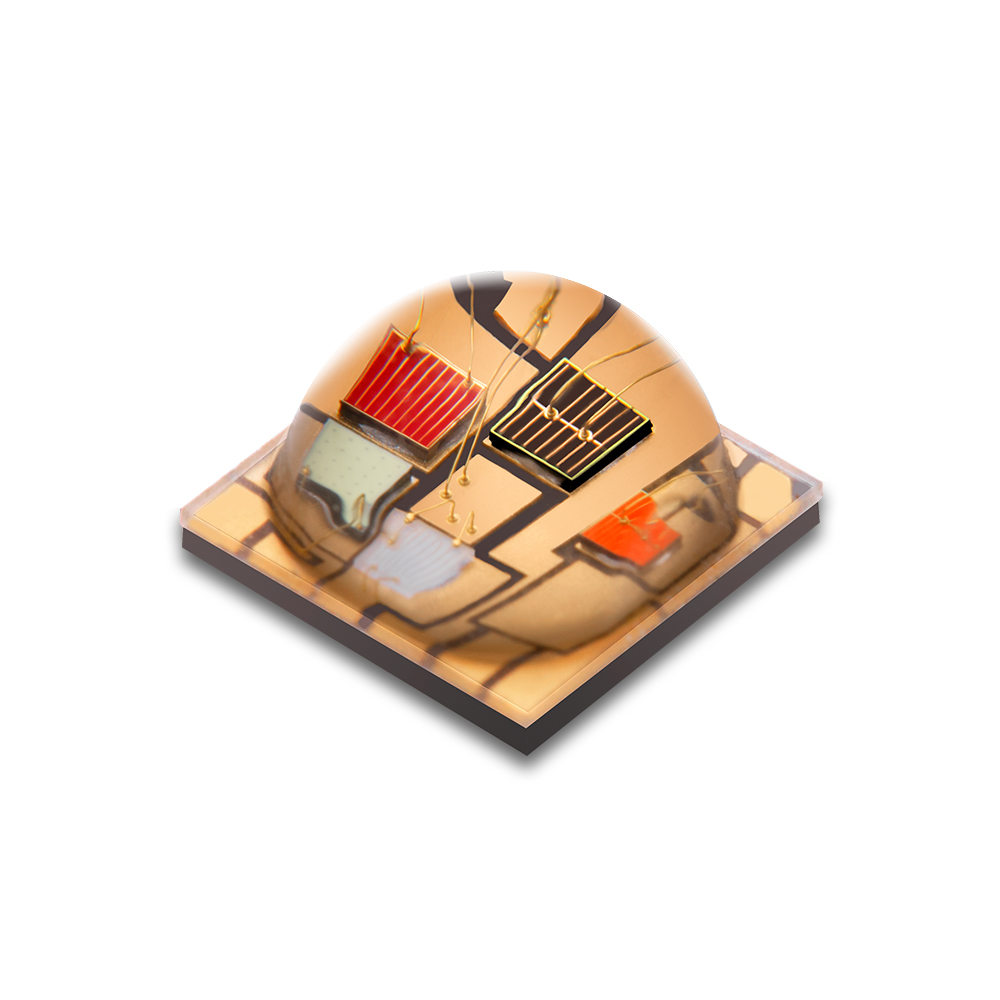

The 7070 patch LED multi wavelength combination light source is a multifunctional and advanced solution for medical and cosmetic applications.
This light source combines five different wavelengths in a compact package, allowing for targeted and effective treatment.
The multi wavelength function can be used for various applications, such as acne treatment and skin regeneration.
7070 patch LED light source is designed to meet the needs of professional medical and beauty practitioners, providing reliable and efficient solutions for achieving the best results
| Part No. | emitting color | Wavelength(nm) | Power(W) | Voltage(V) | Current(mA) | luminous flux(lm)/ | Angle(deg) |
| JH-7070GRVIRY12G45-T8A-S865 | V | 410-415 | 5*3W | 3.2-3.6 | 700 | 400-500 mW | 120 |
| R | 620-625 | 2.2-2.6 | 120-140 lm | ||||
| G | 520-525 | 3.2-3.6 | 240-260 lm | ||||
| Y | 590-595 | 2.2-2.6 | 70-90 lm | ||||
| IR | 855-865 | 3.0-3.4 | 600-700 mW |
Note:
Wavelength can be customized according to demand 365-1600nm,
Photodynamic medical beauty products, beauty instrument, photon skin rejuvenation instrument, large row of lights, beauty mask, etc.
